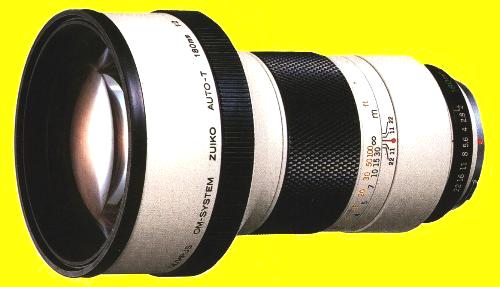

Lens Group       Zuiko 180mm/F2



Characteristics

Applications

Notes - Related Units

The brightest lens in its class.
Colour aberration is corrected virtually to perfection thanks to the utilization of newly developed optical glass with special low dispersion and abnormal dispersion characteristics.
This telephoto lens achieves ideal image resolution to satisfy the demands of ever quality conscious professionals.
An inner focusing mechanism assures extremely fast and convenient focusing.
Indoor sports.
Stage plays.
Landscapes.
Portraits.
For hand-held photography, a shutter speed of 1/250 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-4, 1-6,1-7,1-10,1-13,1-14.

Specifications

Angle of view

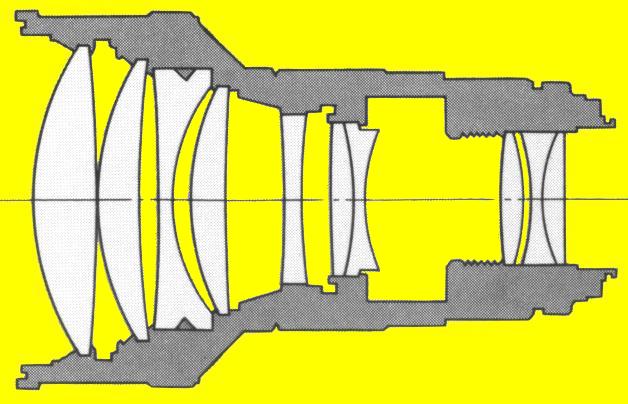

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

14°

10-8

Auto

2-22

1.6m.

25x17cm.

Rotating cam
(Inner focus)

1900g.

174mm.

113mm.

Built-in

100mm
Screw-in
