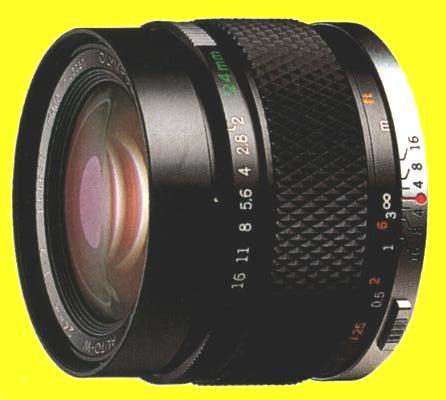

Lens Group       Zuiko 24mm/F2

Characteristics

Applications

Notes - Related Units

This is the fastest 24mm lens available today.
It offers more striking wide angle effects than the 28mm which is now considered a "nornal" wide angle.
It incorporates a floating element group to provide superior image quality at close focusing distances.
The design is so compact it accepts a 55mm. filter.
Snapshots of night scenes taking advantage of the fast lens speed.
Architecture and restricted interiors.
Snapshots.
Exaggerated perspective effects.
Family gatherings.
Lens hood is sold separately.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

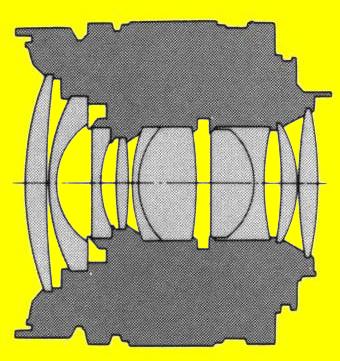

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

84°

10-8

Auto

2-16

0.25m.

23x15cm.

  Straight helicoid

280g.

48mm.

60mm.

55mm
Screw-in

55mm
Screw-in

Download instructions (0.43 Mb)
