Lens Group       Zuiko Zoom 35-70mm/F4 Auto Focus



Characteristics

Applications

Notes - Related Units

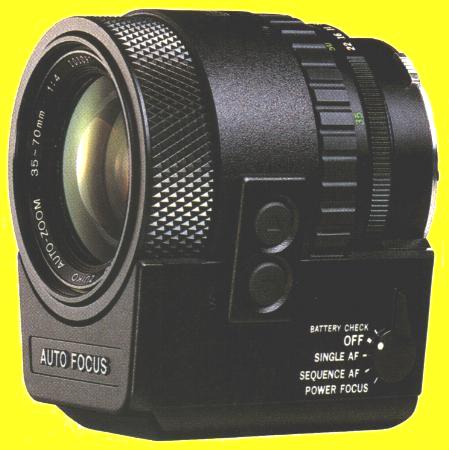

This stand alone autofocus lens turns any Olympus OM manual focus camera into an autofocus unit.
By pressing the buttons on the side of this lens the built in CCD sensor, microchip and focus motor are activated to detect focus abnormalities and correct focus when necessary.
The electronics and AF motor are powered by three AAA size batteries in the built-in battery compartment.
In combination with the OM-30 (OM-F) this lens turns into a dedicated unit that can also be controlled by the shutter release button.
With a Winder or Motor Drive, any OM body, and the M.In-Focus Trigger Cord, Single or Continous In-Focus Operation can be achieved: the Winder or Motor Drive will fire when (Single AF) or as long as (Continous AF) correct focus is detected.
This lens has also a normal focusing ring for manual focus; alternatively a Power Focus mode can be selected to control the focus mechanism with two buttons..
General photography.
Snapshots.
Family gatherings.
Ideal for photographers who aren't familiar with SLR viewfinder focusing.
Under low light conditions (less than 5EV) focusing must be done manually or by Power Focus.
Compatible focusing screens: 1-1~1-6, 1-8, 1-10, 1-13, 1-14.

Specifications

Angle of view

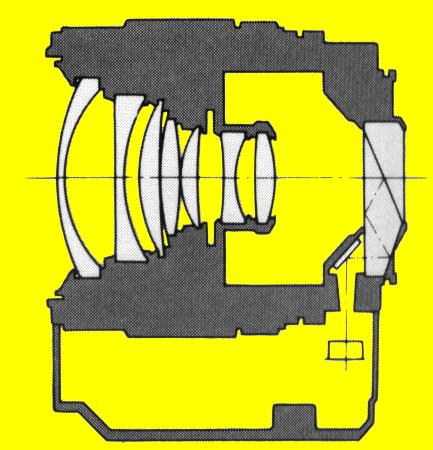

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°~34°

9-8

Auto

4-22

0.75m.

72x48cm(35mm)
36x24cm(70mm)

  Rotating helicoid

550g. (w/o batteries)

70mm.

92mm.

55mm
Screw-in

55mm
Screw-in
