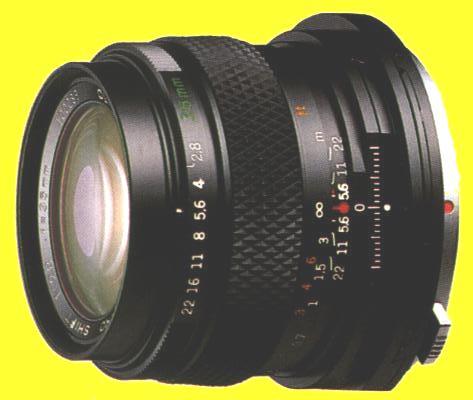

Lens Group       Zuiko Shift 35mm/F2.8



Characteristics

Applications

Notes - Related Units

This unique lens is capable of correcting perspective distortion by allowing the photographer to shift the lens position parallel to then film plane.
Although 35mm in focal length (normally: 63° angle of view), the lens is essentially equivalent to a 24mm lens in angle of coverage (actual 83°).
Critical architectural, studio and composite panoramic photography. To take perspective-corrected pictures:
1) set the camera so that the film plane is aligned parallel to the subject
2) stop down the lens and determine exposure (lens must not be shifted)
3) compose by shifting the lens, and release the shutter.
Compatible focusing screens:
1-1~1-5,1-10 (checker-matte type, specially designed for shift lens),1-13,1-14.

Specifications

Angle of view

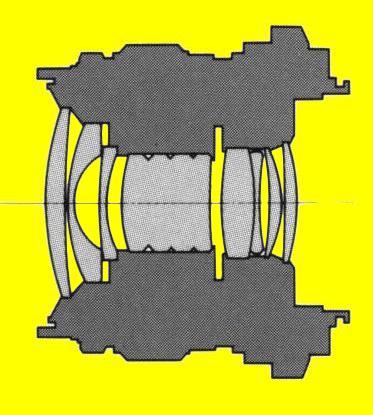

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°
(83° at max. shift)

8-7

Manual

2.8-22

0.30m.

21x14cm.

Straigh helicoid

310g.

58mm.

68mm.

49mm
Screw-in

49mm
Screw-in
