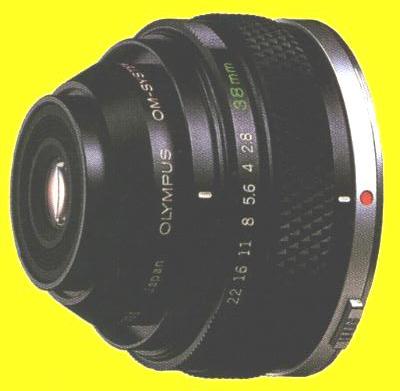

Lens Group       Zuiko Macro 38mm/F2.8



Characteristics

Applications

Notes - Related Units

Along with the Macro 20mm/F2, the world's first super bright aperture, fully automatic high magnification macro lens.
Designed for exceptionally fine image reproduction at magnifications between 1.7 and 8 times life size.
Offers a range of 3.1x~4.5x magnifications with the Telescopic Auto Tube 65~116, and 2.3x~6.7x with the Auto Bellows.
A helicoid is provided for fine adjustments.
Provides for attachment of the 49mm screw-in type ring flash holder.
Macrophotography. This lens must be used in combination with the Auto Bellows or the Telescopic Auto Tube 65~116.
With the 65~116, automatic diaphragm and meter coupling is possible. With the Auto Bellows, automatic coupling is made using the Double Cable Release.
Compatible focusing screens: 1-4 and 1-10~1-12.

Specifications

Angle of view

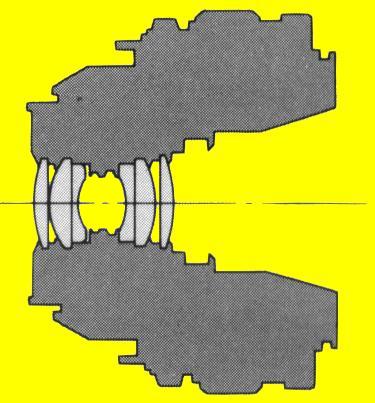

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

9° at highest magnification

6-4

Auto

2.8-22

-

21x14mm(1.7x)
5.4x3.6mm(6.7x)

with Auto Bellows, 65~116, Auto Extension Tube 14, 15; fine focusing straight helicoid built-in.

170g.

46mm.

60mm.

not necessary

-
