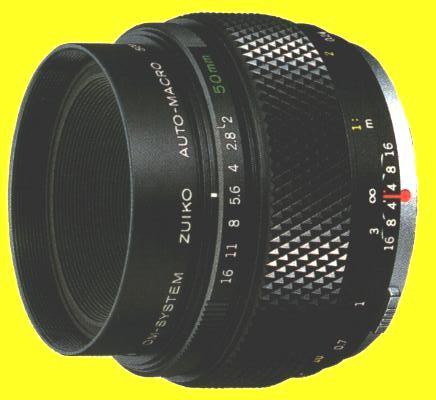

Lens Group       Zuiko Macro 50mm/F2



Characteristics

Applications

Notes - Related Units

The world's first 50mm standard macro lens to feature F2 brightness.
Because of this high speed, even at maximum barrel extension the viewfinder stays bright.
Floating mechanism to compensate for close distance aberrations.
Outstanding performance with extremely stable resolution from infinity to 1/2 x life size at 0.24m.
It is excellent as a standard lens as well as a macro.
Close-up and copying work.
General photography.
Lens hood is not necessary.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

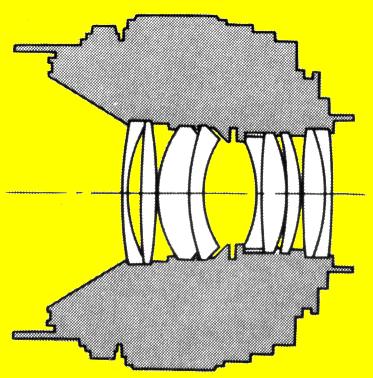

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

47°

9-7

Auto

2-16

0.24m.

72x48mm.

  Straight helicoid

 320g.

55mm.

69mm.

Not
necessary

55mm
Screw-in

Download instructions (0.42 Mb)
