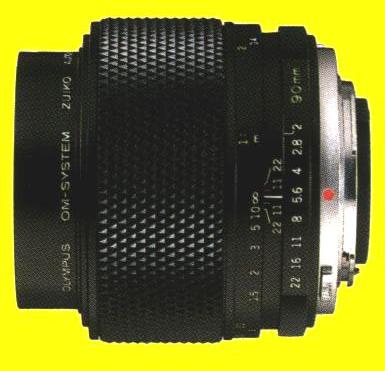

Lens Group       Zuiko Macro 90mm/F2



Characteristics

Applications

Notes - Related Units

A medium telephoto macro lens with a magnification range from 1/2 life size to infinity.
With an F2 aperture the brightest lens in its class, featuring superb resolution at macro distances and excellent performance even with subjects at infinity.
Provides a working distance of 0.24m at the minimum focus of 0.40m assuring extra freedom in lighting, selecting the camera position, etc.
Despite the bright lens, the extremely compact, lightweight design affords outstanding functionality.
The exclusive Olympus focus aberration correction mechanism guarantees first class picture sharpness all the way from minimum focus to infinity.
Close-up and copying work.
Portraits.
Night scenes, interiors.
Stage plays.



Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

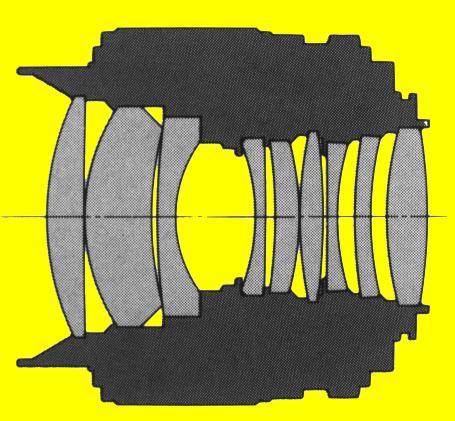

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

27°

9-9

Auto

2-22

0.4m.

72x48mm

  Straight helicoid

550g.

71mm.

72mm.

57mm
Slide-on

55mm
Screw-in
