Phototechnical Group       Power Grip 100M

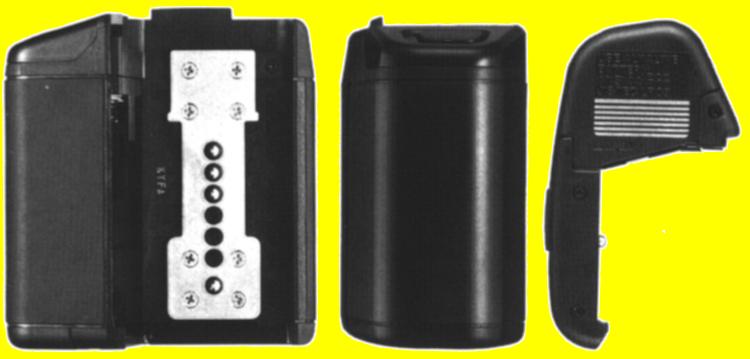

power grip 100.jpg (26718 bytes)

Summary Main Characteristics Notes - Related Units
A detachable type power grip exclusively for use with the OM-707, designed for macrophoto flash photography.
Includes an electromagnetic shutter release mechanism and a socket for the Macrocords F7P and T5P.
This unit serves as the power source for autofocus and all other camera functions.
It is especially designed for using the 50mm/F2.8 AF Macro lens together with the full-synchro flash F280 or electronic flash T32, allowing smaller apertures to be selected than F4, which is important for extra depth of field in macro photography.
Uses four "AAA" alkaline-manganese batteries. One set of batteries will expose about 25 rolls of 24-exposure film (at normal temperature and humidity).
This unit can only be used with the OM-707.
The OM-707 needs either the Power Grip 100, Power Grip 100M or the Power Flash Grip 300 to operate.
See the desciption of the Macrocords F7P and T5P. how to use the Power Grip 100M in macro flash photography.


Download instructions (1.97 Mb)
